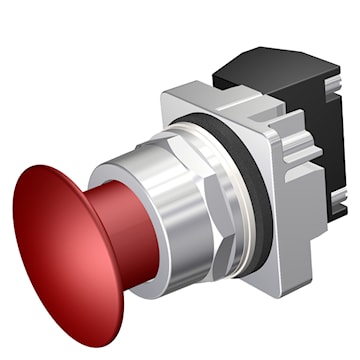

SIEMENS 52PP2A2A P/B PUSH/PULL MUSH RED120V 1NO-1NC

Price $387.74 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Thunder Bay
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:SIEMENS
Manufacturer #:52PP2A2A
Documents Documents

Description

30mm Command/52, Chrome Finish Heavy Duty, Watertight/Oiltight Complete Metal Unit Push-Pull Operator Non-Illuminated Mushroom Head Cap Small 1.73 (44 mm) Metal, Anodized Red 2 Position Maintained, Pull-to-Release with 1 NO-1 NC Heavy DutyContacts, A600/P600 UL Listed, CSA Certified NEMA 1,3,3R,4,4X,12,13 ( & ) Automotive Standards

Specifications

Brand Name Siemens Sub Brand Command/52
Item Name Pushbutton Type 2-Position, Non-Illuminated
Nominal Diameter 30 mm Action DP
Contact Configuration 1 NO, 1 NC Contact Rating A600 / P600
Lamp Voltage 600 VAC/VDC Amperage Rating 10 A
Operating Cycles 300000 Degree of Protection IP20, IP66
Lens Type Round Base Material Metal
Mounting Type Lock Nut Temperature Rating -35 to 70 °C
Standards UL E22655, CSA LR6535 Application For Magnetic Controllers to Control the Starting and Stopping of Motors
UPC 662643854398

Packages

1 - UNIT - 1
