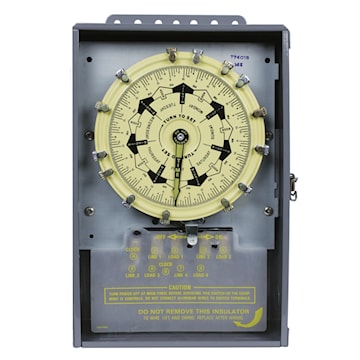

INTERMATIC T7401B 4-Pole 1-Throw 120-480VAC T7000B Series 7-Day Mechanical Time Switch
Description
T7000B Series mechanical time switch is designed for industrial, commercial and residential applications with 7-Day ON/OFF programming and 4PST and 4 pole (2NO/2NC) switching. True 7-Day load control with minimum ON/OFF time of 3 ½ hours. Separate clock motor terminals for switching loads not on-line voltage. Carryover automatically rewinds when power resumes. One hour of rewinding time for every two hours of power outage.
Specifications
Brand Name | Intermatic | Item Name | Analog Time Switch |
Type | Electromechanical | Supply Voltage | 125 VAC |
Timing Range | 3-1/2 hr - 7 dy | Contact Configuration | 4PST - 4 NO |
Contact Rating | 40 A at 120 - 480 VAC, 1000 VA at 120 - 277 VAC | Dimensions | 8-1/4 in W X 4 in D x 12-1/2 in H |
Amperage Rating | 40 A | Frequency Rating | 60 Hz |
Power Source | 2 hp at 120 VAC, 5 hp at 240 VAC (1 Phase), 7-1/2 hp at 208 VAC (3 Phase), 10 hp at 240 VAC (3 Phase) | Power Consumption | 3 W |
Number of Poles | 4 | Terminal Connection | Screw Terminal |
Material | Steel | NEMA Rating | NEMA 1 |
Mounting | Wall | Temperature Rating | -40 to 104 °F |
Standards | cCSAus Certified, HVACR | Application | Commercial, Industrial, Residential, Indoor, HVACR |
UPC | 078275461017 |
