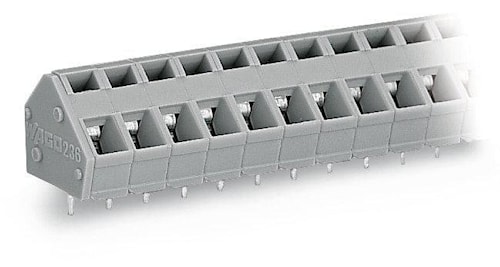

WAGO 236-106 2.5mm 6-Pole PCB Terminal Block
wag236106
WAGO 236-106 2.5mm 6-Pole PCB Terminal Block
Price
$3.28
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:WAGO
Manufacturer #:236-106
Description
PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 6-pole; CAGE CLAMP®; commoning option; 2,50 mm²; gray. PCB terminal strips with CAGE CLAMP® connection, screwdriver actuation parallel or perpendicular to conductor entry. Versions with Ex approval. Mixed-color PCB terminal strips from factory. Operating tools for factory wiring. 45° conductor entry angle permits a wide range of applications and wiring options. Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart.
Specifications
| Brand Name | Wago Corp | Item Name | PCB Terminal Block |
| Type | Single Level | Voltage Rating | 630 V, 4 kV |
| Amperage Rating | 24 A | Number of Poles | 6 |
| Wire Size | 0.08 - 2.5 mm² Solid/Fine Stranded | Wire Strip Length | 5 - 6 mm |
| Spacing | 5/5.08 mm | Connection Type | Cage Clamp |
| Temperature Rating | -60 to 105 °C | Material | Polyamide/Spring Steel |
| Color | Gray | Dimensions | 32.3 mm W x 14 mm D x 17 mm H |
Packages
| 1 - UNIT - 1 |
