lev41106rt6

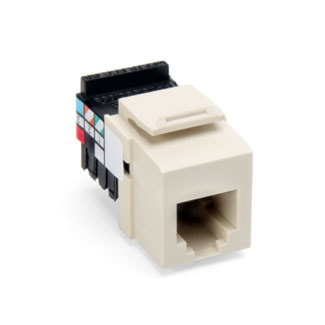

LEVITON MANUFACTURING OF CANADA 41106-RT6 6P6C Voice Grade QuickPort Connector, Light Almond
lev41106rt6
LEVITON MANUFACTURING OF CANADA 41106-RT6 6P6C Voice Grade QuickPort Connector, Light Almond
Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:41106-RT6
Description
QuickPort® connector features robust one-piece lead-frame design. Exclusive cutting ledge combines termination and trim into one labor-saving step. Can be used in conjunction with other QuickPort snap-in modules for voice/data and video applications over UTP, coax and fiber. Meets or exceeds all applicable standards- UL listed, CSA certified and complies with NEC® Article 800, and meets ANSI/TIA-1096-A.
Specifications
| Brand Name | Leviton | Sub Brand | QuickPort |
| Item Name | USOC Connector | Type | Narrow Body, Robust 1-Piece |
| Number of Positions | 6 | Termination Style | 110, Snap-In |
| Contacts | Phosphor Bronze | Color | Light Almond |
| Number of Contacts | 6 | Mounting Type | Flush |
| Dimensions | 0.636 in W x 1.179 in D x 0.83 in H | Environmental Conditions | UL 94 Requirements, V0 Rated Flammability |
| Standards | CSA Certified, UL Listed, TIA\EIA-568-B, FCC Part 68 Compliant, NEC Article 800 Compliant | Application | Commercial |
| UPC | 078477286227 |
Packages
| 1 - UNIT - 1 | 50 - UNIT - 50 |
