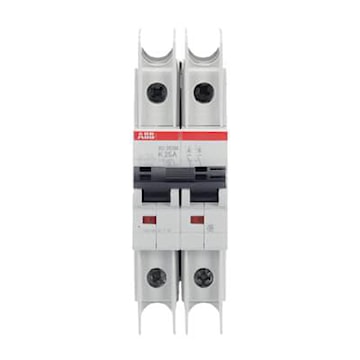

ABB SU202M-K25 25A 2-Pole 10kA SU200M Series K-Character Miniature Circuit Breaker
abbsu202mk25
ABB SU202M-K25 25A 2-Pole 10kA SU200M Series K-Character Miniature Circuit Breaker
Price
$97.10
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:ABB ELECTRIFICATION CANADA INC
Manufacturer #:SU202M-K25
Description
Miniature Circuit Breaker, Rated Current 25 Amps, 2 Pole, Interrupt Rating 10 kA, Trip Curve K, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5
Specifications
| Brand Name | ABB | Item Name | Miniature Circuit Breaker |
| Type | High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection | Series | SU200M |
| Number of Poles | 2 | Interrupt Rating | 10 kA |
| Amperage Rating | 25 A | Voltage Rating | 277/480 VAC, 48/96 VDC |
| Terminal Connection | Screw | Mounting Type | 35 mm DIN Rail |
| Power Rating | 3.2 W | Frequency Rating | 50/60 Hz |
| Conductor Size | 18-4 AWG Conductor, 18-8 AWG Busbars | Auxiliary Contacts | Yes |
| Trip Type | K-Curve | Temperature Rating | -25 to 55 °C |
| Dimensions | 69 mm W x 35 mm D x 111 mm H | Degree of Protection | IP20, IP40 |
| Environmental Conditions | 25 °C at 95 - 100% Relative Humidity, 55 °C at 90 - 96% Relative Humidity, 3 Pollution Degree | Standards | UL 489 Listed, CSA 22.2 No. 5, IEC 60947-2, VDE, CCC |
| Application | Branch Circuit Protection | UPC | 888614423428 |
Packages
| 1 - UNIT - 1 |
