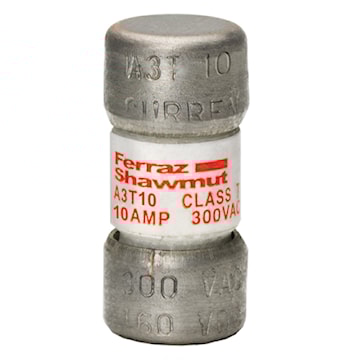

MERSEN A3T10 10A 300VAC 160VDC Mersen A3T Series Class T Fast Acting Fuse

Price $35.66 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:MERSEN
Manufacturer #:A3T10
Documents Documents

Description

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Specifications

Brand Name Ferraz Shawmut Sub Brand Amp-Trap®
Item Name Fuse Type Current Limiting, Fast Acting
Voltage Rating 300 VAC, 160 VDC Amperage Rating 10 A
Interrupt Rating 200 kA Fuse Class Class T
Mounting Type Clip Terminal Connection Ferrule
Response Time Fast-Acting Contact Material Copper
Construction GMG Dimensions 0.41 x 0.88 in
Standards UL Listed to Standard 248-15, File E2137, DC Listed to UL Standard 248, CSA Certified to Standard C22.2, No. 248.15, RoHS Compliant Application Load centers; Panelboards; Switchboards; Circuit Breakers; Metering Centers
UPC 782001890056

Packages

10 - UNIT - (10)
