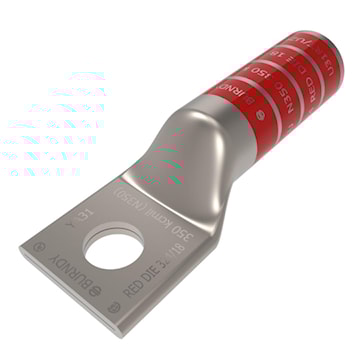

HUBBELL 1/2 inch 350kcmil Burndy Hylug One Hole Copper Compression Lug Long Barrel, Tin Plated

Price $63.90 / EA
Inventory
Available for delivery
Unavailable for pick up Abbotsford
  • Edmonton Express
  • Winnipeg
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Thunder Bay
  • Trail
  • Victoria
  • Airdrie
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Humboldt
  • Squamish
Qty EA
Manufacturer:HUBBELL
Manufacturer #:YA31
Documents Documents

Description

Copper Compression Lug, 1 Hole w/o Inspection Window, 350 kcmil, 1/2" Stud, Long Barrel, Tin Plated.

Specifications

Brand Name Burndy Sub Brand Hylug™
Item Name Compression Lug Type Straight, Non-Insulated
Conductor Size 350 kcmil, 185 mm² for Class 2 Conductor Number of Holes 1
Stud Size 0.5 in Overall Length 3.73 in
Color Code Red Material Copper
Voltage Rating 35000 V Barrel Type Long
Terminal Connection Slender Flange Finish Tin Plated
Standards UL Listed At 90 °C, 600 V - 35 kV, CSA Certified, RoHS Compliant Application Code Conductor
UPC 781810504956

Packages

1 - UNIT - 1 10 - UNIT - 10
