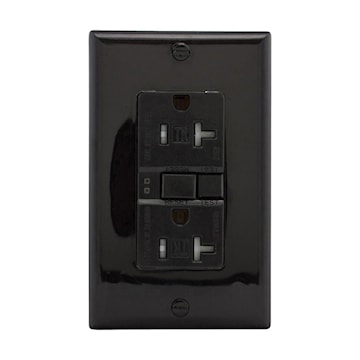

COOPER INDUSTRIES TRSGF20BK 20Amp 125V 2-Pole/3-Wire NEMA 5-20R Duplex Self-Test GFCI Receptacle, Black

Inventory
Unavailable for order
Manufacturer:COOPER INDUSTRIES
Manufacturer #:TRSGF20BK

Description

GFCI receptacles are designed with the safety of the user in mind. In commercial and industrial areas like public bathrooms, breakrooms and food service areas, the NECĀ® requires GFCI receptacles. Arrow Hart Self-Test GFCI receptacles are UL Listed and fully compliant with all of the latest UL943 Class A GFCI and UL498 requirements. The Self-Test GFCIs conduct an automatic test periodically to ensure GFCI protection. The device will trip and will not reset if GFCI protection is not available. Additionally, GFCIs incorporate a safety lock-out function to protect against mis-wired line-load connections and GFCI circuitry damage.

Specifications

Brand Name Cooper Industries Sub Brand Arrow Hart
Item Name Duplex Receptacle Type Tamper-Resistant, Self-Test, GFCI
Grade Specification Voltage Rating 125 VAC
Amperage Rating 20 A Number of Poles 2
Number of Wires 3 NEMA Configuration 5-20R
Connection Type Back and Side Wire Short Circuit Rating 10 kA
Conductor Size 14-10 AWG Material Nylon Top, PVC Bottom
Color Black Frequency Rating 60 Hz
Phase 1 Trip Time 0.025 sec
Terminal Connection #8-32 Steel Screw Dielectric Strength 2000 VAC
Grounding Automatic Dimensions 1.3 in W x 1.27 in D x 4.2 in H
Temperature Rating -35 °C to 66 °C Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Standards cULus Listed, Nom 426 UPC 032664739934

Packages

1 - UNIT - 1 10 - UNIT - 10 40 - UNIT - 40
