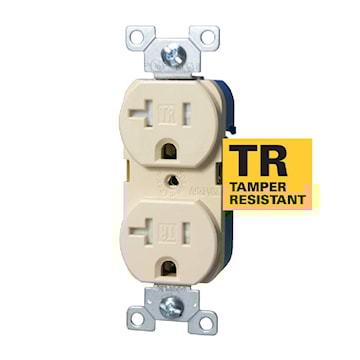

COOPER INDUSTRIES TR370A 20Amp 125V 2-Pole/3-Wire NEMA 5-20R Tamper Resistant Duplex Receptacle - Side Wire, Almond

Price $4.85 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Thunder Bay
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:COOPER INDUSTRIES
Manufacturer #:TR370A
Documents Documents

Description

DESIGN FEATURES:- Tamper resistant receptacles provide compliance with 2014 NEC Article 406.12 which states that all 15A and 20A, 125V/AC receptacles installed in dwelling units must be tamper resistant- ”TR“ designation provides visual identification- High impact-resistant thermoplastic face and back body eliminates breakage- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation- Push-in terminals accept #14 AWG solid wire for quick installation- Double-wipe ground contacts ensure long-term ground retention- Side wire terminals accept up to #10 AWG solid wire

Specifications

Brand Name Eaton Item Name Duplex Receptacle
Type Tamper-Resistant Grade Residential
Voltage Rating 125 VAC Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
NEMA Configuration 5-15R Connection Type Back and Side Wired
Conductor Size 14-10 AWG Material Thermoplastic
Color Almond Terminal Connection Screw
Dielectric Strength 2000 V Grounding Grounding
Contact Material Brass Alloy Dimensions 1.3 in L x 0.69 in W x 4.19 in H
Mounting Type Flush Temperature Rating -20 to 60 °C
Environmental Conditions Meets UL94 Requirements, V2 Rated Standards cULus Listed to UL498, File Number E15058, UL Certified to CSA C22.2, Number 42, NOM/ANSI Certified
Application New Residential Construction, Remodel/Retrofit Residential Construction, Apartment Buildings, Condominiums and Townhouses, Hotels, Motels, Inns and Suites with Kitchenettes, Retirement Communities, Nursing Homes and Assisted Living Facilities

Packages

1 - UNIT - 1 10 - UNIT - 10 100 - UNIT - 100
