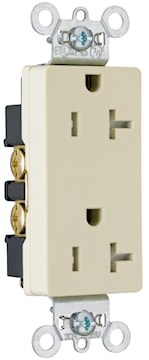

PASS & SEYMOUR TR26352I 20Amp 125V radiant Spec-Grade Tamper Resistant Receptacle, Ivory

Price $11.59 / EA
Inventory
Available for backorder
Unavailable for pick up Abbotsford
  • Abbotsford
  • Burnaby
  • Calgary
  • Chilliwack
  • Coquitlam
  • Estevan
  • Fort McMurray
  • Kelowna
  • Lethbridge
  • Nanaimo
  • Nisku
  • Penticton
  • PLC Automation
  • Regina
  • Saskatoon
  • Surrey
  • Thunder Bay
  • Trail
  • Victoria
  • Airdrie
  • Edmonton Express
  • LANGLEY
  • Langford Express
  • N. Vancouver Express
  • Red Deer Express
  • Vancouver Express
  • Whistler Express
  • Winnipeg
  • Humboldt
  • Squamish
Qty EA
Manufacturer:PASS & SEYMOUR
Manufacturer #:TR26352I
PASS & SEYMOUR logo
Documents Documents

Description

The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.radiant Screwless Wall Plate not included.PRODUCT FEATURES:- Dual mechanical shutter system to help prevent insertion of foreign objects. - Auto-ground clip assures positive ground. - High impact-resistant nylon face for durability. - Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. - .032-inch thick brass triple-wiper power contacts for reliable plug retention. - Backed-out tri-drive steel terminal screws for faster installation. - Corrosion-resistant, plated steel strap.

Specifications

Brand Name Pass & Seymour Sub Brand The Radiant®
Item Name Straight Blade Duplex Receptacle Type Decorator, Tamper-Resistant
Grade Specification Voltage Rating 125 V
Amperage Rating 20 A Number of Poles 2
Number of Wires 3 NEMA Configuration 5-20R
Connection Type Back and Side Wired Conductor Size 14-10 AWG Copper
Material High Impact-Resistant Nylon Color Ivory
Terminal Connection Screw Dielectric Strength 2000 V
Contact Material 0.032 in 260 Brass Line, 0.04 in 260 Brass Ground Dimensions 1.32 in W x 0.65 in D x 3.28 in H
Temperature Rating -40 to 60 °C without Impact Environmental Conditions Meets UL94 Requirements, V2 Rated
Standards UL498 Listed, CSA-C22.2 No. 42, NEMA WD-1 and WD-6, RoHS Compliant Application Residential, Multi-Dwelling, Commercial Office and Hospitality Applications
UPC 785007008463

Packages

1 - UNIT - 1 10 - UNIT - 10 100 - UNIT - 100 4400 - SKID - 4400
