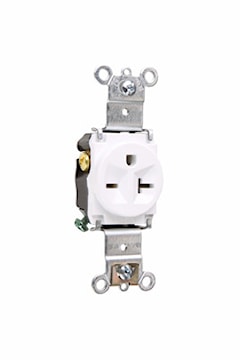

PASS & SEYMOUR 5871-W 20Amp 250V NEMA 6-20R Heavy-Duty Spec Grade Single Receptacle - Back & Side Wire, White

Price $48.96 / EA
Inventory
Available for delivery
Unavailable for pick up Abbotsford
Qty EA
Manufacturer:PASS & SEYMOUR
Manufacturer #:5871W

Description

20Amp 250V Heavy-Duty Spec Grade Single Receptacle - Back & Side Wire.FEATURES AND BENEFITS: • RoHS Compliant • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. • One-piece brass, triple-wipe power contacts for lasting retention. • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. • Impact-resistant nylon face and thermoplastic back body. • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire. • Terminal compartments isolated from each other for positive conductor containment. • Tri-drive terminal and mounting screws. • Auto-ground clip assures positive ground.

Specifications

Brand Name Pass & Seymour Sub Brand Pass & Seymour
Item Name Straight Blade Single Receptacle Type Heavy Duty
Grade Specification Size 1.32 L x 1.093 W x 3.68 H In
Voltage Rating 250 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
Connection Type Back and Side Wire NEMA Rating 6-20R
Conductor Size 14-10 AWG Material Nylon
Color White Finish Matte
Terminal Connection Screw Dielectric Strength 2000 V
Dimensions 1.32 in L x 1.093 in W x 3.68 in H Mounting Type Wall, Flush
Temperature Rating -40 °C to 60 °C Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Standards UL 498, CSA C22.2 No. 42 Application Commercial Grade
UPC 785007587135

Packages

1 - UNIT - 1 10 - UNIT - 10 100 - UNIT - 100 4400 - SKID - 4400
