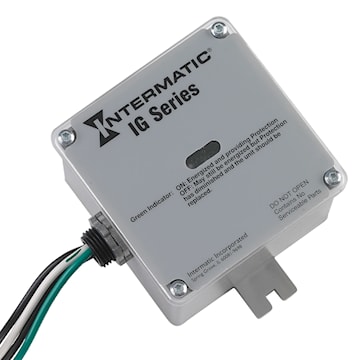

INTERMATIC IG1240RC3 2-Phase Type 1/2 120/240VAC IG Series Surge Protective Device
intig1240rc3
INTERMATIC IG1240RC3 2-Phase Type 1/2 120/240VAC IG Series Surge Protective Device
Price
$287.27
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:INTERMATIC
Manufacturer #:IG1240RC3
Description
IG1240RC3 Surge Protective Devices are designed for a variety of Type 1 and Type 2 applications. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA listed to ANSI/UL 1449 3rd edition, the IG series is approved for residential/light commercial services (AC power, telephone and/or cable).
Six modes of surge protection
TPMOV® surge protection technology
Green LED indicator provides status of protection
Type 3R rainproof enclosure for indoor/outdoor applications in plastic
5-year product warranty
$10,000 connected equipment warranty on appliances and electronics
CSA certified to ANSI/UL 1449 3rd edition
Specifications
| Brand Name | Intermatic | Item Name | Surge Protection Device |
| Type | Type I or II, Varistor | Voltage Rating | 120 - 240 VAC |
| Number of Wires | 4 | Short Circuit Rating | 50 kA |
| Modes of Protection | 6 (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2) | Frequency Rating | 50/60 Hz |
| Indicator Type | Green LED | Phase | 2 |
| Class | Surge Protection | Material | Plastic |
| Color | Gray | Finish | Plastic |
| Dimensions | 4.2 in W x 3.33 in D x 4.2 in H | Mounting Type | Surface with Brackets |
| Environmental Conditions | Outdoor | Temperature Rating | 85.0 degrees C |
| Warranty | 5-year Product Warranty; 5-year/$3,000 Connected Equipment Warranty | For Use With | HVAC, electronics |
| Includes | Plastic Case | Standards | UL 1449, CSA Certified |
| Application | For Residential, Light Commercial | UPC | 078275124394 |
Packages
| 1 - UNIT - 1 | 4 - UNIT - 4 |
