hofas150

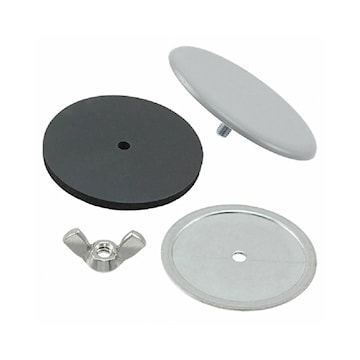

HOFFMAN 1-1/2 inch HOL-SEALERS Steel Hole Seal, Gray
hofas150
HOFFMAN 1-1/2 inch HOL-SEALERS Steel Hole Seal, Gray
Price
$38.13
/ EA
Inventory
Available for delivery
Unavailable for pick up
Abbotsford
Manufacturer:HOFFMAN
Manufacturer #:AS150
Description
Hole seal for 1-1/2inch conduit holes, Steel, ANSI 61, Grey colour, 2 inch maximum hole diameter, 2 1/2 inch hole-sealer diameter, Polyester powder paint finish over galvanized front surface, Used to seal extra pushbutton holes, Conduit and knockout openings against dust, dirt, oil and water.
Available in multiple colors and sizes
Oil-resistant gasket provided
Steel model has plated stud (10-32x5/8) and wing nut
Stainless steel model has 300 series stainless steel stud (10-24x5/8) and wing nut
Plated stud (10-32x5/8) and wing nut
Stainless Steel Models:
16 gauge stainless steel backplate
Seal, backplate, stud (10-24x5/8) and wing nut are 300 series stainless steel
Specifications
| Brand Name | nVent Hoffman | Sub Brand | Hol-Tite®, Hol-Sealers™ |
| Item Name | Hole Seal | Material | Steel |
| Type | General Accessories | Color | Gray |
| Finish | Galvanized | Dimensions | 2-1/2 in dia |
| For Use With | 1-1/2 in Conduit Holes | Includes | 16 ga Galvanized Steel Backplate, 10-32 x 5/8 in Plated Stud, and Wing Nut |
| Standards | UL 508A, UL File Number E61997, CSA File Number 42186, IEC 60529, IP66 Rated, NEMA/EEMAC Type 3R, 4, 4X, 12, 13 | Application | Seal Extra Pushbutton Holes, Conduit Openings and Knockout Openings Against Dust, Dirt, Oil and Water with Hoffman Hol-Sealers and Can be used on Enclosure Walls up to 0.31 in Thick |
| UPC | 783510597504 |
Packages
| 10 - UNIT - (10) |
