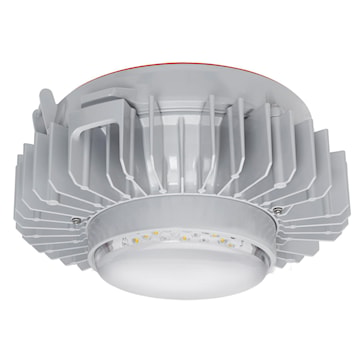

EGS IMLGL7CD5BU FIXT LED MERC 3 POLYGLOBE 120/277V
Description
IndustrialMercmasterâ„¢ LED Generation 3 Series Luminaires for Ordinary Locations. Modular design provides thousands of combinations for maximum versatility. Design is suited for low mounting heights, from 7 ft, up to 30 ft. Seven light outputs provide up to 17,500 lumens.
Specifications
Brand Name | Appleton | Sub Brand | Mercmaster |
Item Name | LED Luminaire | Type | Generation 3, Industrial |
Voltage Rating | 120 - 277 VAC, 170 - 300 VDC | Fixture Wattage | 57 W |
Lamp Type | LED | Series | IMLG |
Amperage Rating | 0.48 A at 120 VAC, 0.23 A at 277 VAC, 0.34 A at 170 VDC, 0.19 A at 300 VDC | Light Color | Cool White |
Lumens | 7500 lm | Color Temperature | 5000 K |
Lens Type | Clear Polycarbonate | Enclosure Type | Type 3R, 4, 4X, IP66, IP67 |
Standards | cULus Listed, Wet Location RatedUL 1598, UL 50E, UL1598A, UL 8750, CSA Standard: C22.2 No. 250.0, C22.2 No. 250.13, C22.2 No. 94.2, C22.2 No. 0, C22.2 No. 60529, NEMA ANSI/IEC Standards: 60529, cCSAus: 164460, Certificate Number: 70129364 | Application | For Warehouses, Storage Facilities, Machine Shops, Receiving Areas, Manufacturing Plants, Walkways and Catwalks |
UPC | 781381171465 |
Packages
1 - UNIT - 1 |
